Taperlock Style
Members size larger than .150” have female centers. Members equal to .150” or smaller have male centers.
Members 32 TPI and coarser are convoluted and have chip grooves. Members finer than 32 TPI are chamfered.

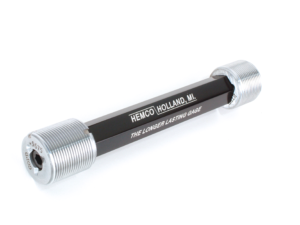

Trilock Style
Members 32 TPI and coarser are convoluted and have chip grooves. Members finer than 32 TPI are chamfered.
Reversible Style
Members size larger than .150” have female centers. Members equal to .150” or smaller have male centers.
Members 32 TPI and coarser are convoluted and have chip grooves. Members finer than 32 TPI.are chamfered.
The feature of Reversible gages is that when one end becomes worn or damaged, the gage member can be reversed providing a new gage.
Exceptional value, essentially two gage members for the price of one.
All gages are made to ASME Std. B47.1 and Screw Thread Standards for Federal services: Fed. Std. H28 and ANSI/ASME B1.2 and B1.16M.
Gage members have tapered shanks that fit corresponding handles.
Guaranteed against chipping or peeling. (excluding normal wear and tear)
All standard thread plug gages are supplied with Class “X” tolerance on O.D., P.D., lead, flank angles, and straightness.
Other tolerances can be special quoted.
