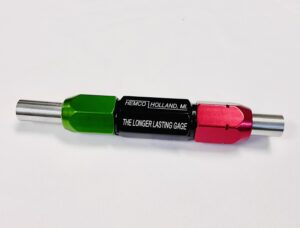

Wire Type Design- Wire type gage blank also known as reversible or Pin gages. The gage mounts in a Double or Single-ended collet handle. The Go gage is identified with a Green collet nut; the NoGo gage is identified with a Red collet nut which also has an annular groove cut around the hex diameter. Both gaging members can be reversed for extended gage life making this design the most economical gage design.
Standard Inch
Sizes .039” through 1.0005” in .0001” increments.
Available in Class X,Y,Z,XX,ZZ, Go (+) or Notgo (-) in sizes .039” through 1.00009” in .0001
Metric
Sizes .991 mm through 25.55 mm
.01 mm increments
Available in Class X,Y,Z,XX,ZZ, Go (+) or Notgo (-)
Made in the United States
